本文复现了ResNet50-NAM模型，其引入基于归一化的注意力机制（NAM），利用Batch Normalization的缩放因子计算通道注意力，避免额外全连接层和卷积层。在CIFAR100数据集上，将ResNet第一层卷积调整为3×3小核，去掉maxpooling层，经训练，该模型相比原始ResNet50效果提升，且缓解过拟合。
☞☞☞AI 智能聊天, 问答助手, AI 智能搜索, 免费无限量使用 DeepSeek R1 模型☜☜☜
论文地址：https://arxiv.org/abs/2111.12419
注意力机制在近年来大热，注意力机制可以帮助神经网络抑制通道中或者是空间中不太显著的特征。之前的很多的研究聚焦于如何通过注意力算子来获取显著性的特征。这些方法成功的发现了特征的不同维度之间的互信息量。但是，缺乏对权值的贡献因子的考虑，而这个贡献因子可以进一步的抑制不显著的特征。因此，我们瞄准了利用权值的贡献因子来提升注意力的效果。我们使用了Batch Normalization的缩放因子来表示权值的重要程度。这样可以避免如SE，BAM和CBAM一样增加全连接层和卷积层。这样，我们提出了一个新的注意力方式：基于归一化的注意力（NAM）。
我们提出的NAM是一种轻量级的高效的注意力机制，我们采用了CBAM的模块集成方式，重新设计了通道注意力和空间注意力子模块，这样，NAM可以嵌入到每个网络block的最后。对于残差网络，可以嵌入到残差结构的最后。对于通道注意力子模块，我们使用了Batch Normalization中的缩放因子，如式子（1），缩放因子反映出各个通道的变化的大小，也表示了该通道的重要性。为什么这么说呢，可以这样理解，缩放因子即BN中的方差，方差越大表示该通道变化的越厉害，那么该通道中包含的信息会越丰富，重要性也越大，而那些变化不大的通道，信息单一，重要性小。

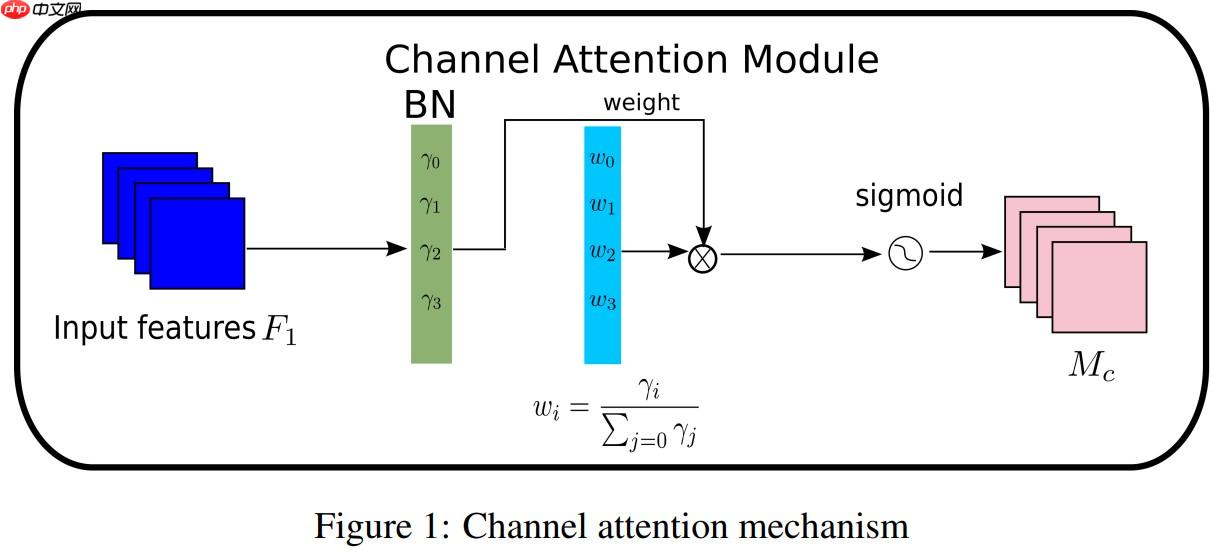

其中μB和σB为均值，B为标准差，γ和β是可训练的仿射变换参数（尺度和位移）参考Batch Normalization.通道注意力子模块如图(1)和式(2)所示：

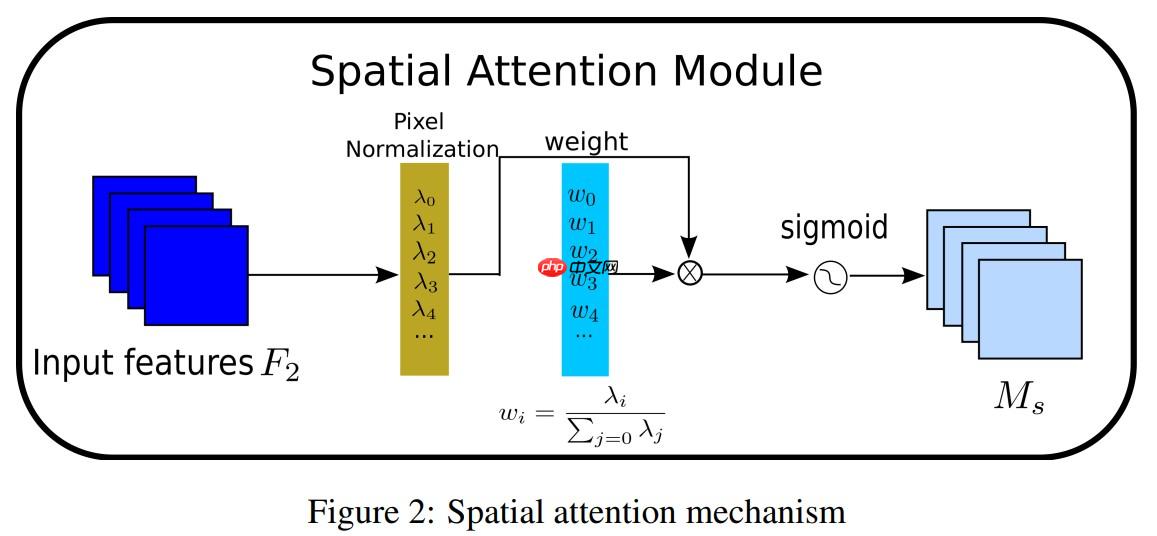

其中Mc表示最后得到的输出特征，γ是每个通道的缩放因子，因此，每个通道的权值可以通过 Wγ=γi/∑j=0γj 得到。我们也使用一个缩放因子 BN 来计算注意力权重，称为像素归一化。像素注意力如图(2)和式(3)所示：
为了抑制不重要的特征，作者在损失函数中加入了一个正则化项，如式(4)所示。
链接：http://www.cs.toronto.edu/~kriz/cifar.html
CIFAR100数据集有100个类。每个类有600张大小为32 × 32 32\times 3232×32的彩色图像，其中500张作为训练集，100张作为测试集。
from __future__ import divisionfrom __future__ import print_functionimport paddleimport paddle.nn as nnfrom paddle.nn import functional as Ffrom paddle.utils.download import get_weights_path_from_urlimport pickleimport numpy as npfrom paddle import callbacksfrom paddle.vision.transforms import (
ToTensor, RandomHorizontalFlip, RandomResizedCrop, SaturationTransform, Compose,
HueTransform, BrightnessTransform, ContrastTransform, RandomCrop, Normalize, RandomRotation
)from paddle.vision.datasets import Cifar100from paddle.io import DataLoaderfrom paddle.optimizer.lr import CosineAnnealingDecay, MultiStepDecay, LinearWarmupimport random它抑制了较少显著性的权值，对注意力模块应用一个权重稀疏惩罚
class Channel_Att(nn.Layer):
def __init__(self, channels=3, t=16):
super(Channel_Att, self).__init__()
self.channels = channels
self.bn2 = nn.BatchNorm2D(self.channels) def forward(self, x):
residual = x
x = self.bn2(x)
weight_bn = self.bn2.weight.abs() / paddle.sum(self.bn2.weight.abs())
x = x.transpose([0, 2, 3, 1])
x = paddle.multiply(weight_bn, x)
x = x.transpose([0, 3, 1, 2])
x = F.sigmoid(x) * residual #
return xclass Att(nn.Layer):
def __init__(self, channels=3, out_channels=None, no_spatial=True):
super(Att, self).__init__()
self.Channel_Att = Channel_Att(channels)
def forward(self, x):
x_out1=self.Channel_Att(x) return x_out1
__all__ = []
model_urls = { 'resnet18': ('https://paddle-hapi.bj.bcebos.com/models/resnet18.pdparams', 'cf548f46534aa3560945be4b95cd11c4'), 'resnet34': ('https://paddle-hapi.bj.bcebos.com/models/resnet34.pdparams', '8d2275cf8706028345f78ac0e1d31969'), 'resnet50': ('https://paddle-hapi.bj.bcebos.com/models/resnet50.pdparams', 'ca6f485ee1ab0492d38f323885b0ad80'), 'resnet101': ('https://paddle-hapi.bj.bcebos.com/models/resnet101.pdparams', '02f35f034ca3858e1e54d4036443c92d'), 'resnet152': ('https://paddle-hapi.bj.bcebos.com/models/resnet152.pdparams', '7ad16a2f1e7333859ff986138630fd7a'),
}class BasicBlock(nn.Layer):
expansion = 1
def __init__(self,
inplanes,
planes,
stride=1,
downsample=None,
groups=1,
base_width=64,
dilation=1,
norm_layer=None):
super(BasicBlock, self).__init__() if norm_layer is None:
norm_layer = nn.BatchNorm2D if dilation > 1: raise NotImplementedError( "Dilation > 1 not supported in BasicBlock")
self.conv1 = nn.Conv2D(
inplanes, planes, 3, padding=1, stride=stride, bias_attr=False)
self.bn1 = norm_layer(planes)
self.relu = nn.ReLU()
self.conv2 = nn.Conv2D(planes, planes, 3, padding=1, bias_attr=False)
self.bn2 = norm_layer(planes)
self.downsample = downsample
self.stride = stride
self.nam = Att(planes) def forward(self, x):
identity = x
out = self.conv1(x)
out = self.bn1(out)
out = self.relu(out)
out = self.conv2(out)
out = self.bn2(out) if self.downsample is not None:
identity = self.downsample(x)
out = self.nam(out)
out += identity
out = self.relu(out) return outclass BottleneckBlock(nn.Layer):
expansion = 4
def __init__(self,
inplanes,
planes,
stride=1,
downsample=None,
groups=1,
base_width=64,
dilation=1,
norm_layer=None):
super(BottleneckBlock, self).__init__() if norm_layer is None:
norm_layer = nn.BatchNorm2D
width = int(planes * (base_width / 64.)) * groups
self.conv1 = nn.Conv2D(inplanes, width, 1, bias_attr=False)
self.bn1 = norm_layer(width)
self.conv2 = nn.Conv2D(
width,
width, 3,
padding=dilation,
stride=stride,
groups=groups,
dilation=dilation,
bias_attr=False)
self.bn2 = norm_layer(width)
self.conv3 = nn.Conv2D(
width, planes * self.expansion, 1, bias_attr=False)
self.bn3 = norm_layer(planes * self.expansion)
self.relu = nn.ReLU()
self.downsample = downsample
self.stride = stride
self.nam = Att(planes*4) def forward(self, x):
identity = x
out = self.conv1(x)
out = self.bn1(out)
out = self.relu(out)
out = self.conv2(out)
out = self.bn2(out)
out = self.relu(out)
out = self.conv3(out)
out = self.bn3(out) if self.downsample is not None:
identity = self.downsample(x)
out = self.nam(out)
out += identity
out = self.relu(out) return outclass ResNet(nn.Layer):
"""ResNet model from
`"Deep Residual Learning for Image Recognition" <https://arxiv.org/pdf/1512.03385.pdf>`_
Args:
Block (BasicBlock|BottleneckBlock): block module of model.
depth (int): layers of resnet, default: 50.
num_classes (int): output dim of last fc layer. If num_classes <=0, last fc layer
will not be defined. Default: 1000.
with_pool (bool): use pool before the last fc layer or not. Default: True.
Examples:
.. code-block:: python
from paddle.vision.models import ResNet
from paddle.vision.models.resnet import BottleneckBlock, BasicBlock
resnet50 = ResNet(BottleneckBlock, 50)
resnet18 = ResNet(BasicBlock, 18)
"""
def __init__(self, block, depth, num_classes=100, with_pool=True):
super(ResNet, self).__init__()
layer_cfg = { 18: [2, 2, 2, 2], 34: [3, 4, 6, 3], 50: [3, 4, 6, 3], 101: [3, 4, 23, 3], 152: [3, 8, 36, 3]
}
layers = layer_cfg[depth]
self.num_classes = num_classes
self.with_pool = with_pool
self._norm_layer = nn.BatchNorm2D
self.inplanes = 64
self.dilation = 1
###
# 将大核卷积改为小核卷积
###
self.conv1 = nn.Conv2D( 3,
self.inplanes,
kernel_size=3,
stride=1,
padding=1,
bias_attr=False)
self.bn1 = self._norm_layer(self.inplanes)
self.relu = nn.ReLU() ###
# 去掉第一层池化
###
# self.maxpool = nn.MaxPool2D(kernel_size=3, stride=2, padding=1)
self.layer1 = self._make_layer(block, 64, layers[0])
self.layer2 = self._make_layer(block, 128, layers[1], stride=2)
self.layer3 = self._make_layer(block, 256, layers[2], stride=2)
self.layer4 = self._make_layer(block, 512, layers[3], stride=2) if with_pool:
self.avgpool = nn.AdaptiveAvgPool2D((1, 1)) if num_classes > 0:
self.fc = nn.Linear(512 * block.expansion, num_classes) def _make_layer(self, block, planes, blocks, stride=1, dilate=False):
norm_layer = self._norm_layer
downsample = None
previous_dilation = self.dilation if dilate:
self.dilation *= stride
stride = 1
if stride != 1 or self.inplanes != planes * block.expansion:
downsample = nn.Sequential(
nn.Conv2D(
self.inplanes,
planes * block.expansion, 1,
stride=stride,
bias_attr=False),
norm_layer(planes * block.expansion), )
layers = []
layers.append(
block(self.inplanes, planes, stride, downsample, 1, 64,
previous_dilation, norm_layer))
self.inplanes = planes * block.expansion for _ in range(1, blocks):
layers.append(block(self.inplanes, planes, norm_layer=norm_layer)) return nn.Sequential(*layers) def forward(self, x):
x = self.conv1(x)
x = self.bn1(x)
x = self.relu(x) ###
# 去掉池化
###
# x = self.maxpool(x)
x = self.layer1(x)
x = self.layer2(x)
x = self.layer3(x)
x = self.layer4(x) if self.with_pool:
x = self.avgpool(x) if self.num_classes > 0:
x = paddle.flatten(x, 1)
x = self.fc(x) return xdef _resnet(arch, Block, depth, pretrained, **kwargs):
model = ResNet(Block, depth, **kwargs) if pretrained: assert arch in model_urls, "{} model do not have a pretrained model now, you should set pretrained=False".format(
arch)
weight_path = get_weights_path_from_url(model_urls[arch][0],
model_urls[arch][1])
param = paddle.load(weight_path)
model.set_dict(param) return modeldef resnet50(pretrained=False, **kwargs):
"""ResNet 50-layer model
Args:
pretrained (bool): If True, returns a model pre-trained on ImageNet
Examples:
.. code-block:: python
from paddle.vision.models import resnet50
# build model
model = resnet50()
# build model and load imagenet pretrained weight
# model = resnet50(pretrained=True)
"""
return _resnet('resnet50', BottleneckBlock, 50, pretrained, **kwargs)def resnet18(pretrained=False, **kwargs):
"""ResNet 18-layer model
Args:
pretrained (bool): If True, returns a model pre-trained on ImageNet
Examples:
.. code-block:: python
from paddle.vision.models import resnet18
# build model
model = resnet18()
# build model and load imagenet pretrained weight
# model = resnet18(pretrained=True)
"""
return _resnet('resnet18', BasicBlock, 18, pretrained, **kwargs)net = resnet50() paddle.summary(net, (1,3,32,32))
W0616 11:51:50.953474 25258 gpu_context.cc:278] Please NOTE: device: 0, GPU Compute Capability: 7.0, Driver API Version: 11.2, Runtime API Version: 10.1 W0616 11:51:50.958021 25258 gpu_context.cc:306] device: 0, cuDNN Version: 7.6.
-------------------------------------------------------------------------------
Layer (type) Input Shape Output Shape Param #
===============================================================================
Conv2D-1 [[1, 3, 32, 32]] [1, 64, 32, 32] 1,728
BatchNorm2D-1 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
ReLU-1 [[1, 64, 32, 32]] [1, 64, 32, 32] 0
Conv2D-3 [[1, 64, 32, 32]] [1, 64, 32, 32] 4,096
BatchNorm2D-3 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
ReLU-2 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Conv2D-4 [[1, 64, 32, 32]] [1, 64, 32, 32] 36,864
BatchNorm2D-4 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
Conv2D-5 [[1, 64, 32, 32]] [1, 256, 32, 32] 16,384
BatchNorm2D-5 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
Conv2D-2 [[1, 64, 32, 32]] [1, 256, 32, 32] 16,384
BatchNorm2D-2 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
BatchNorm2D-6 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
Channel_Att-1 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Att-1 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
BottleneckBlock-1 [[1, 64, 32, 32]] [1, 256, 32, 32] 0
Conv2D-6 [[1, 256, 32, 32]] [1, 64, 32, 32] 16,384
BatchNorm2D-7 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
ReLU-3 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Conv2D-7 [[1, 64, 32, 32]] [1, 64, 32, 32] 36,864
BatchNorm2D-8 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
Conv2D-8 [[1, 64, 32, 32]] [1, 256, 32, 32] 16,384
BatchNorm2D-9 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
BatchNorm2D-10 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
Channel_Att-2 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Att-2 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
BottleneckBlock-2 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Conv2D-9 [[1, 256, 32, 32]] [1, 64, 32, 32] 16,384
BatchNorm2D-11 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
ReLU-4 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Conv2D-10 [[1, 64, 32, 32]] [1, 64, 32, 32] 36,864
BatchNorm2D-12 [[1, 64, 32, 32]] [1, 64, 32, 32] 256
Conv2D-11 [[1, 64, 32, 32]] [1, 256, 32, 32] 16,384
BatchNorm2D-13 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
BatchNorm2D-14 [[1, 256, 32, 32]] [1, 256, 32, 32] 1,024
Channel_Att-3 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Att-3 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
BottleneckBlock-3 [[1, 256, 32, 32]] [1, 256, 32, 32] 0
Conv2D-13 [[1, 256, 32, 32]] [1, 128, 32, 32] 32,768
BatchNorm2D-16 [[1, 128, 32, 32]] [1, 128, 32, 32] 512
ReLU-5 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-14 [[1, 128, 32, 32]] [1, 128, 16, 16] 147,456
BatchNorm2D-17 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
Conv2D-15 [[1, 128, 16, 16]] [1, 512, 16, 16] 65,536
BatchNorm2D-18 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
Conv2D-12 [[1, 256, 32, 32]] [1, 512, 16, 16] 131,072
BatchNorm2D-15 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
BatchNorm2D-19 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
Channel_Att-4 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Att-4 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
BottleneckBlock-4 [[1, 256, 32, 32]] [1, 512, 16, 16] 0
Conv2D-16 [[1, 512, 16, 16]] [1, 128, 16, 16] 65,536
BatchNorm2D-20 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
ReLU-6 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-17 [[1, 128, 16, 16]] [1, 128, 16, 16] 147,456
BatchNorm2D-21 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
Conv2D-18 [[1, 128, 16, 16]] [1, 512, 16, 16] 65,536
BatchNorm2D-22 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
BatchNorm2D-23 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
Channel_Att-5 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Att-5 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
BottleneckBlock-5 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-19 [[1, 512, 16, 16]] [1, 128, 16, 16] 65,536
BatchNorm2D-24 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
ReLU-7 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-20 [[1, 128, 16, 16]] [1, 128, 16, 16] 147,456
BatchNorm2D-25 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
Conv2D-21 [[1, 128, 16, 16]] [1, 512, 16, 16] 65,536
BatchNorm2D-26 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
BatchNorm2D-27 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
Channel_Att-6 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Att-6 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
BottleneckBlock-6 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-22 [[1, 512, 16, 16]] [1, 128, 16, 16] 65,536
BatchNorm2D-28 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
ReLU-8 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-23 [[1, 128, 16, 16]] [1, 128, 16, 16] 147,456
BatchNorm2D-29 [[1, 128, 16, 16]] [1, 128, 16, 16] 512
Conv2D-24 [[1, 128, 16, 16]] [1, 512, 16, 16] 65,536
BatchNorm2D-30 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
BatchNorm2D-31 [[1, 512, 16, 16]] [1, 512, 16, 16] 2,048
Channel_Att-7 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Att-7 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
BottleneckBlock-7 [[1, 512, 16, 16]] [1, 512, 16, 16] 0
Conv2D-26 [[1, 512, 16, 16]] [1, 256, 16, 16] 131,072
BatchNorm2D-33 [[1, 256, 16, 16]] [1, 256, 16, 16] 1,024
ReLU-9 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-27 [[1, 256, 16, 16]] [1, 256, 8, 8] 589,824
BatchNorm2D-34 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
Conv2D-28 [[1, 256, 8, 8]] [1, 1024, 8, 8] 262,144
BatchNorm2D-35 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Conv2D-25 [[1, 512, 16, 16]] [1, 1024, 8, 8] 524,288
BatchNorm2D-32 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
BatchNorm2D-36 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Channel_Att-8 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Att-8 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
BottleneckBlock-8 [[1, 512, 16, 16]] [1, 1024, 8, 8] 0
Conv2D-29 [[1, 1024, 8, 8]] [1, 256, 8, 8] 262,144
BatchNorm2D-37 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
ReLU-10 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-30 [[1, 256, 8, 8]] [1, 256, 8, 8] 589,824
BatchNorm2D-38 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
Conv2D-31 [[1, 256, 8, 8]] [1, 1024, 8, 8] 262,144
BatchNorm2D-39 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
BatchNorm2D-40 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Channel_Att-9 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Att-9 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
BottleneckBlock-9 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-32 [[1, 1024, 8, 8]] [1, 256, 8, 8] 262,144
BatchNorm2D-41 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
ReLU-11 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-33 [[1, 256, 8, 8]] [1, 256, 8, 8] 589,824
BatchNorm2D-42 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
Conv2D-34 [[1, 256, 8, 8]] [1, 1024, 8, 8] 262,144
BatchNorm2D-43 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
BatchNorm2D-44 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Channel_Att-10 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Att-10 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
BottleneckBlock-10 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-35 [[1, 1024, 8, 8]] [1, 256, 8, 8] 262,144
BatchNorm2D-45 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
ReLU-12 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-36 [[1, 256, 8, 8]] [1, 256, 8, 8] 589,824
BatchNorm2D-46 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
Conv2D-37 [[1, 256, 8, 8]] [1, 1024, 8, 8] 262,144
BatchNorm2D-47 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
BatchNorm2D-48 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Channel_Att-11 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Att-11 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
BottleneckBlock-11 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-38 [[1, 1024, 8, 8]] [1, 256, 8, 8] 262,144
BatchNorm2D-49 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
ReLU-13 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-39 [[1, 256, 8, 8]] [1, 256, 8, 8] 589,824
BatchNorm2D-50 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
Conv2D-40 [[1, 256, 8, 8]] [1, 1024, 8, 8] 262,144
BatchNorm2D-51 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
BatchNorm2D-52 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Channel_Att-12 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Att-12 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
BottleneckBlock-12 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-41 [[1, 1024, 8, 8]] [1, 256, 8, 8] 262,144
BatchNorm2D-53 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
ReLU-14 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-42 [[1, 256, 8, 8]] [1, 256, 8, 8] 589,824
BatchNorm2D-54 [[1, 256, 8, 8]] [1, 256, 8, 8] 1,024
Conv2D-43 [[1, 256, 8, 8]] [1, 1024, 8, 8] 262,144
BatchNorm2D-55 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
BatchNorm2D-56 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 4,096
Channel_Att-13 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Att-13 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
BottleneckBlock-13 [[1, 1024, 8, 8]] [1, 1024, 8, 8] 0
Conv2D-45 [[1, 1024, 8, 8]] [1, 512, 8, 8] 524,288
BatchNorm2D-58 [[1, 512, 8, 8]] [1, 512, 8, 8] 2,048
ReLU-15 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Conv2D-46 [[1, 512, 8, 8]] [1, 512, 4, 4] 2,359,296
BatchNorm2D-59 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,048
Conv2D-47 [[1, 512, 4, 4]] [1, 2048, 4, 4] 1,048,576
BatchNorm2D-60 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
Conv2D-44 [[1, 1024, 8, 8]] [1, 2048, 4, 4] 2,097,152
BatchNorm2D-57 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
BatchNorm2D-61 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
Channel_Att-14 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Att-14 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
BottleneckBlock-14 [[1, 1024, 8, 8]] [1, 2048, 4, 4] 0
Conv2D-48 [[1, 2048, 4, 4]] [1, 512, 4, 4] 1,048,576
BatchNorm2D-62 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,048
ReLU-16 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Conv2D-49 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,359,296
BatchNorm2D-63 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,048
Conv2D-50 [[1, 512, 4, 4]] [1, 2048, 4, 4] 1,048,576
BatchNorm2D-64 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
BatchNorm2D-65 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
Channel_Att-15 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Att-15 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
BottleneckBlock-15 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Conv2D-51 [[1, 2048, 4, 4]] [1, 512, 4, 4] 1,048,576
BatchNorm2D-66 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,048
ReLU-17 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Conv2D-52 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,359,296
BatchNorm2D-67 [[1, 512, 4, 4]] [1, 512, 4, 4] 2,048
Conv2D-53 [[1, 512, 4, 4]] [1, 2048, 4, 4] 1,048,576
BatchNorm2D-68 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
BatchNorm2D-69 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 8,192
Channel_Att-16 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
Att-16 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
BottleneckBlock-16 [[1, 2048, 4, 4]] [1, 2048, 4, 4] 0
AdaptiveAvgPool2D-1 [[1, 2048, 4, 4]] [1, 2048, 1, 1] 0
Linear-1 [[1, 2048]] [1, 100] 204,900
===============================================================================
Total params: 23,818,788
Trainable params: 23,652,132
Non-trainable params: 166,656
-------------------------------------------------------------------------------
Input size (MB): 0.01
Forward/backward pass size (MB): 121.64
Params size (MB): 90.86
Estimated Total Size (MB): 212.51
-------------------------------------------------------------------------------{'total_params': 23818788, 'trainable_params': 23652132}class ToArray(object):
def __call__(self, img):
img = np.array(img)
img = np.transpose(img, [2, 0, 1])
img = img / 255.
return img.astype('float32')class RandomApply(object):
def __init__(self, transform, p=0.5):
super().__init__()
self.p = p
self.transform = transform
def __call__(self, img):
if self.p < random.random(): return img
img = self.transform(img) return img
class LRSchedulerM(callbacks.LRScheduler):
def __init__(self, by_step=False, by_epoch=True, warm_up=True):
super().__init__(by_step, by_epoch)
assert by_step ^ warm_up
self.warm_up = warm_up
def on_epoch_end(self, epoch, logs=None):
if self.by_epoch and not self.warm_up: if self.model._optimizer and hasattr(
self.model._optimizer, '_learning_rate') and isinstance(
self.model._optimizer._learning_rate, paddle.optimizer.lr.LRScheduler):
self.model._optimizer._learning_rate.step()
def on_train_batch_end(self, step, logs=None):
if self.by_step or self.warm_up:
if self.model._optimizer and hasattr(
self.model._optimizer, '_learning_rate') and isinstance(
self.model._optimizer._learning_rate, paddle.optimizer.lr.LRScheduler):
self.model._optimizer._learning_rate.step() if self.model._optimizer._learning_rate.last_epoch >= self.model._optimizer._learning_rate.warmup_steps:
self.warm_up = Falsedef _on_train_batch_end(self, step, logs=None):
logs = logs or {}
logs['lr'] = self.model._optimizer.get_lr()
self.train_step += 1
if self._is_write():
self._updates(logs, 'train')def _on_train_begin(self, logs=None):
self.epochs = self.params['epochs'] assert self.epochs
self.train_metrics = self.params['metrics'] + ['lr'] assert self.train_metrics
self._is_fit = True
self.train_step = 0callbacks.VisualDL.on_train_batch_end = _on_train_batch_end
callbacks.VisualDL.on_train_begin = _on_train_begin使用Paddle自带的Cifar100数据集API加载
model = paddle.Model(resnet50(pretrained=False))# 加载checkpoint# model.load('output/ResNet50-NAM/299.pdparams')MAX_EPOCH = 300LR = 0.01WEIGHT_DECAY = 5e-4MOMENTUM = 0.9BATCH_SIZE = 256CIFAR_MEAN = [0.5071, 0.4865, 0.4409]
CIFAR_STD = [0.1942, 0.1918, 0.1958]
DATA_FILE = './data/data76994/cifar-100-python.tar.gz'model.prepare(
paddle.optimizer.Momentum(
learning_rate=LinearWarmup(CosineAnnealingDecay(LR, MAX_EPOCH), 2000, 0., LR),
momentum=MOMENTUM,
parameters=model.parameters(),
weight_decay=WEIGHT_DECAY),
paddle.nn.CrossEntropyLoss(),
paddle.metric.Accuracy(topk=(1,5)))# 定义数据集增强方式transforms = Compose([
RandomCrop(32, padding=4),
RandomApply(BrightnessTransform(0.1)),
RandomApply(ContrastTransform(0.1)),
RandomHorizontalFlip(),
RandomRotation(15),
ToArray(),
Normalize(CIFAR_MEAN, CIFAR_STD),
])
val_transforms = Compose([ToArray(), Normalize(CIFAR_MEAN, CIFAR_STD)])# 加载训练和测试数据集train_set = Cifar100(DATA_FILE, mode='train', transform=transforms)
test_set = Cifar100(DATA_FILE, mode='test', transform=val_transforms)# 定义保存方式和训练可视化checkpoint_callback = paddle.callbacks.ModelCheckpoint(save_freq=1, save_dir='output/ResNet50-NAM')
callbacks = [LRSchedulerM(),checkpoint_callback, callbacks.VisualDL('vis_logs/resnet50_nam.log')]# 训练模型model.fit(
train_set,
test_set,
epochs=MAX_EPOCH,
batch_size=BATCH_SIZE,
shuffle=True,
num_workers=4,
verbose=1,
callbacks=callbacks,
)model = paddle.Model(paddle.vision.models.resnet50(pretrained=False))# 加载checkpoint# model.load('output/ResNet50-NAM/299.pdparams')MAX_EPOCH = 300LR = 0.01WEIGHT_DECAY = 5e-4MOMENTUM = 0.9BATCH_SIZE = 256CIFAR_MEAN = [0.5071, 0.4865, 0.4409]
CIFAR_STD = [0.1942, 0.1918, 0.1958]
DATA_FILE = './data/data76994/cifar-100-python.tar.gz'model.prepare(
paddle.optimizer.Momentum(
learning_rate=LinearWarmup(CosineAnnealingDecay(LR, MAX_EPOCH), 2000, 0., LR),
momentum=MOMENTUM,
parameters=model.parameters(),
weight_decay=WEIGHT_DECAY),
paddle.nn.CrossEntropyLoss(),
paddle.metric.Accuracy(topk=(1,5)))# 定义数据集增强方式transforms = Compose([
RandomCrop(32, padding=4),
RandomApply(BrightnessTransform(0.1)),
RandomApply(ContrastTransform(0.1)),
RandomHorizontalFlip(),
RandomRotation(15),
ToArray(),
Normalize(CIFAR_MEAN, CIFAR_STD),
])
val_transforms = Compose([ToArray(), Normalize(CIFAR_MEAN, CIFAR_STD)])# 加载训练和测试数据集train_set = Cifar100(DATA_FILE, mode='train', transform=transforms)
test_set = Cifar100(DATA_FILE, mode='test', transform=val_transforms)# 定义保存方式和训练可视化checkpoint_callback = paddle.callbacks.ModelCheckpoint(save_freq=1, save_dir='output/ResNet50')
callbacks = [LRSchedulerM(),checkpoint_callback, callbacks.VisualDL('vis_logs/resnet50.log')]# 训练模型model.fit(
train_set,
test_set,
epochs=MAX_EPOCH,
batch_size=BATCH_SIZE,
shuffle=True,
num_workers=4,
verbose=1,
callbacks=callbacks,
)两次实验均使用相同的参数：

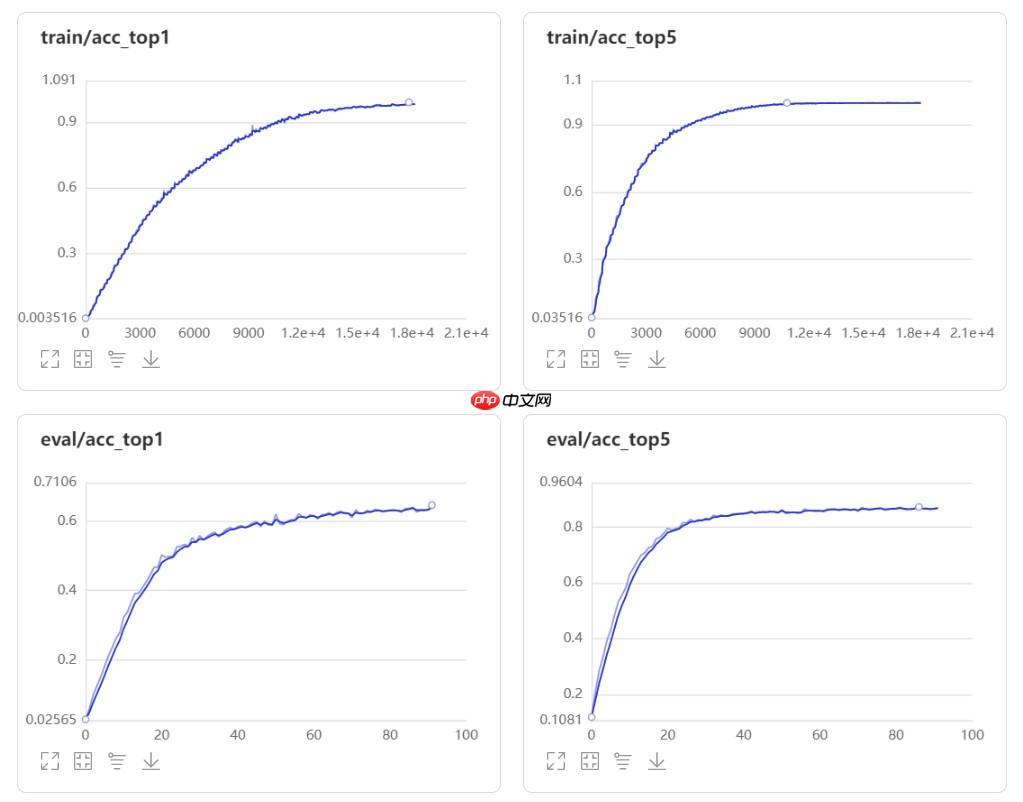

ResNet50-NAM模型的Top-1 acc和Top-5 acc如下图所示:

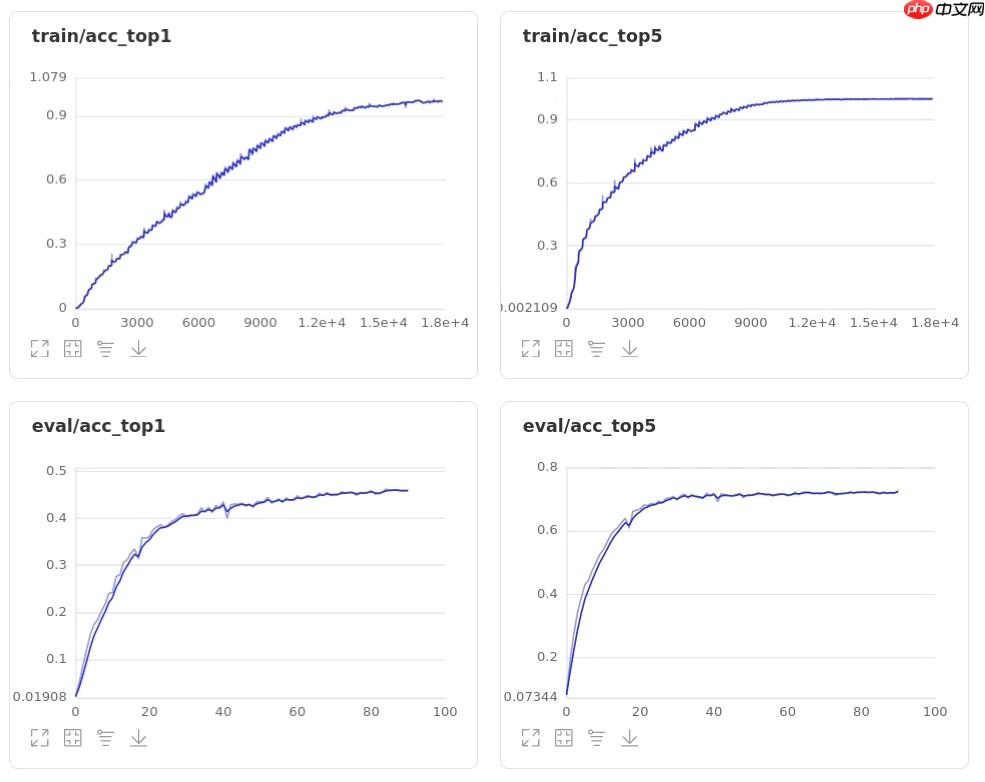

ResNet50模型的Top-1 acc和Top-5 acc如下图所示:
通过比较，经过修改后的模型效果得到了明显的提升，且原始ResNet50产生了明显的过拟合现象
models = paddle.Model(resnet50())
models.load('output/ResNet50-NAM/1.pdparams')
models.prepare()
result = models.evaluate(test_set, verbose=1)print(result)以上就是【AI达人特训营】ResNet50-NAM：一种新的注意力计算方式复现的详细内容，更多请关注php中文网其它相关文章！
每个人都需要一台速度更快、更稳定的 PC。随着时间的推移，垃圾文件、旧注册表数据和不必要的后台进程会占用资源并降低性能。幸运的是，许多工具可以让 Windows 保持平稳运行。
Copyright 2014-2025 https://www.php.cn/ All Rights Reserved | php.cn | 湘ICP备2023035733号
719
收藏
